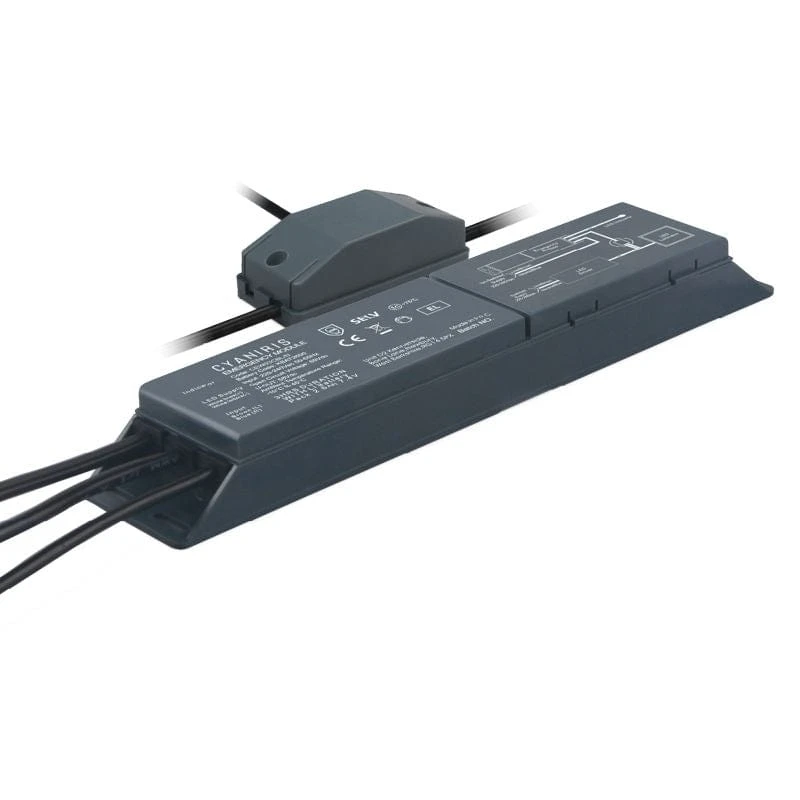

Kosnic 3W Universal Emergency Module For LED Luminaires – CEW03LIL/N

The Universal Emergency Module (UEM) is suitable for class III luminaires with integrated LEDs and separate LED drivers. The UEM will supply the luminaire with up to 3W of power for three hours. The UEM will adjust the DC voltage output within the UEM’s limits to the level required to operate the luminaire and then adjust the current to limit the power to a maximum of 3W to ensure operation time of three hours. The UEM has a replaceable internal lithium-ion battery and can be installed within a luminaire or within the ceiling void to provide a back-up supply in the event of a power cut. The UEM requires a permanent live un-switched supply to maintain the battery charge. In the event of a power cut the battery within the UEM will supply the luminaire through a connection that must be made between the LED driver output and LED luminaire input.

For class III luminaires with integrated LEDs and separate LED drivers

For maintained or non-maintained emergency lighting systems

Conforms to EN 61347-1 and EN 61347-2-7

Supplied with plug-in Three-Way Connector with DC jacks that can also be wired via internal terminals

Suitable for use in luminaires for high-risk task area lighting

Voltage change-over threshold according to EN 60598-2-22

3 hours rated duration

Internal Li-Ion battery for improved lifespan allowing frequent partial discharge without capacity reduction

Over-charge, over-current, short-circuit and deep discharge protection for battery

Green charging status LED

Colour Finish: Black

Input Current (mA): 35

Input Voltage: 220-240Vac 50-60Hz

IP Rating: IP20

Class Protection: Class II

Input to Output Protection: Double Insulation

Output Wattage (W): 2.3-3.3

Output Voltage (Vdc): 9-58

Output Current (mA): 50-130

Open Circuit Voltage (Vdc): 60

Maximum Working Voltage (Vdc): 58

Length (mm): 230

Width (mm): 46

Depth (mm): 26

Maximum Case Temperature (°C): 75

Ambient Temperature (°C): -10 to 45

Emergency Conversion Time (seconds): 1

Emergency Operating Time (hours): > 3

Test Function: Manual

Battery Code: KBAT2600

Battery Voltage (V): 7.4

Battery Capacity (mAh): 2600

Battery Type: Li-Ion

Battery Charge Voltage (Vdc): 8.5

Battery Charge Current (mA): 30-210

Battery Discharge Voltage (Vdc): 6.0-8.4

Battery Discharge Current (mA): 600-700

Battery Life (years): 4

Charging Time (hrs): 12

Barcode: 5060063426617
