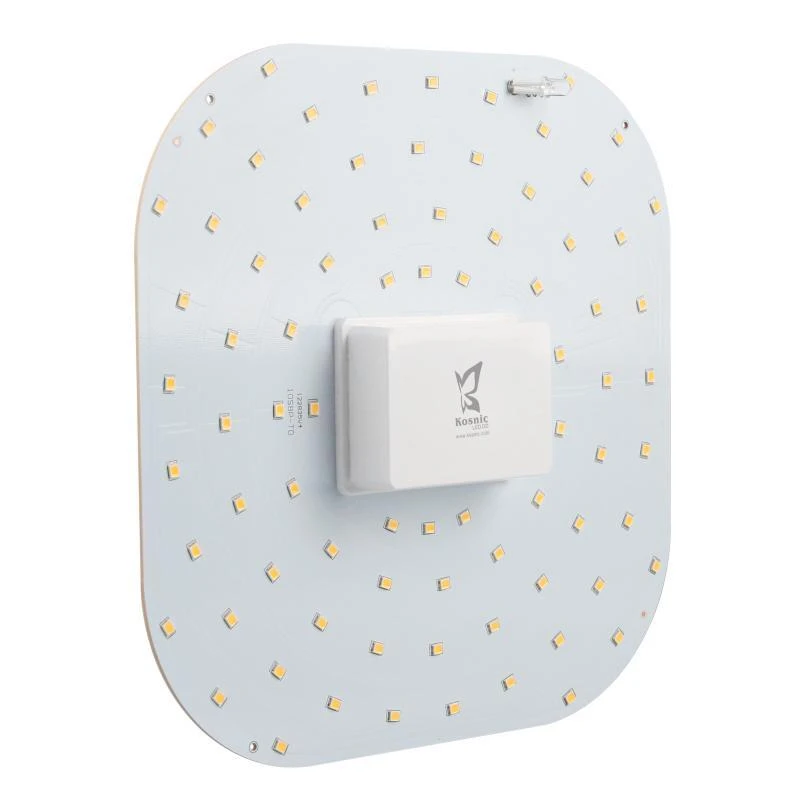

Kosnic Maintained Emergency DD LED Module – KTC27EME-DD

The Kosnic Ultra thin Opal LED DD range

Must be used with KOSNIC 9W/12W/18W LED DD lamp(KLED09STD/4P, KLED12STD/4P, KLED18STD/4P).

Features:

• Save energy up to 50% compared with traditional fluorescent DD fittings.
• Lasts upto 4 times longer than with fluorescent DD Lamps.
• 3 hours emergency operating time
• Direct replacement of GR10-q base fluorescent DD Lamps.

• Instant start.

• Negligible UV and IR radiation output.
• Supports maintained and non-maintained mode

Specifications:

• Input Current (max): 35mA
• Output Voltage: 20-38Vdc
• Output Current: 50 mA
• Open Circuit Voltage: 39 Vdc
• Maximum Working Voltage: 36 Vdc
• Input to Output Protection: Double Insulation
• Battery: Samsung Li-Ion KBAT2200
• Battery Voltage: 7.4V
• Battery Capacity: 2200mAh
• Battery Charge Voltage (max): 8.5Vdc
• Battery Charge Current (max): 210mA
• Battery Discharge Voltage: 6.0-8.4Vdc
• Battery Discharge Current (max): 270 mA
• Charging Time: 12h
• Battery Life: 4 Years
• Emergency Conversion Time: 1s
• Emergency Operation Time: >3h
• Depth: 24mm
• Maximum Case Temperature (°C): 75°C
