Timeguard have upgraded the popular LED100/200 series of LED Energy Saving PIR Floodlights with even more benefits and features. We have taken on board customer feedback in the redesign to include a discreet 180° PIR detector with a 10m detection range and a slave terminal for control of up to 100W extra LED lighting. A maximum of 4 floodlights can now be wired in parallel to enable any detector to turn ON all lights connected. With a compact design, greater lumen output and of course our Fast-Fix pin connection for quick installation, the new LED100/200E range is a quality choice for new and existing installations.

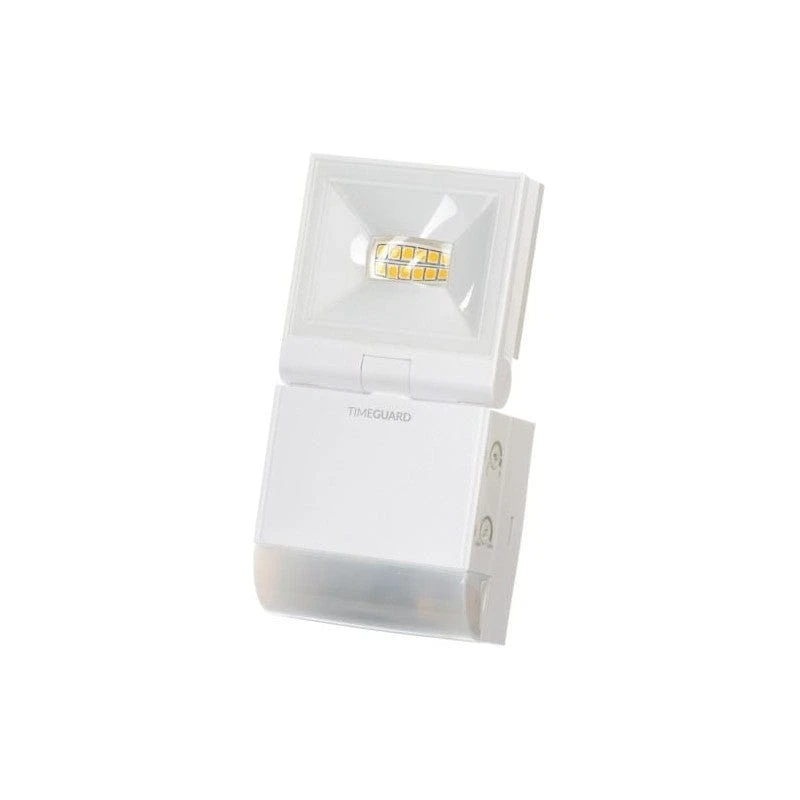

- 1x 10W Powerful LED compact PIR floodlight.
- 1x 840lm lumens bright white light.Â
- Pan and tilt light aiming adjustment.Â
- Operating temperature -20°C to + 45°C.Â
- Colour temperature 4000k.Â
- Discreet 180° PIR detection with 10m detection area.Â
- Motion Detection Range – up to 10m at 2.5m mounting height.
- Adjustable time setting 2 seconds to 30 minutes.Â
- Adjustable 2 – 200 LUX setting.Â
- Beam angle 90 x 90.Â
- IP55 weatherproof rating.Â
- Manual override.
- Slave terminal available for additional external lighting loads; LED max 100W, halogen max 300W, fluorescent max 200W.Â
- Parallel switching facility – a maximum of 4x LED100E/LED200E floodlights can be wired in parallel to enable any detector to turn ON all the lights connected.
- Optional wall mount spacer available: 907.0.971.
- Optional corner mounting bracket available: 907.0.756.
