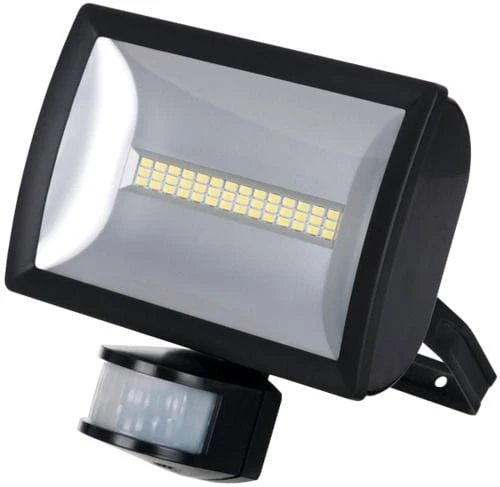

TimeGuard 20W LED Energy Saver Wide Beam PIR Floodlight – Black – LEDX20PIRB

Traditional styling with LED Energy Saving technology incorporating our compact ‘G’ design PIR detector head.

Features:

• Powerful 20W LED energy saving PIR floodlight – equivalent to 180W halogen lighting with only 10% of the running costs
• 1260 lumens bright white light
• Light on times adjustment 5 seconds to 10 minutes
• Optional dusk to dawn mode setting
• Optional permanent ON mode setting – when in dusk to dawn and maximum time setting
• Optional manual ON with pulsed supply mode setting
• Optional test mode
• 180° PIR detector with up to 12m detection range
• Instant light ON to full brightness
• LUX (light level) adjustment – day to night (2 to 200)
• IP55 weatherproof rating
• Easy quick fit bracket installation

Specifications:

• Lamp type: 20W LED
• Detection range (Max): 12 metres
• Angle of detection: 180°
• Lamp beam angle: 110° x 100°
• Colour temperature: 5000 – 5600k
• Light ON time after last detection (adjustable): 5 seconds (min) to 10 minutes (max)
• Permanent ON facility: Pulse
• EC directives: Conforms to latest directives
• Dimensions: Height: 160mm x Width: 175mm x Depth: 115mm
