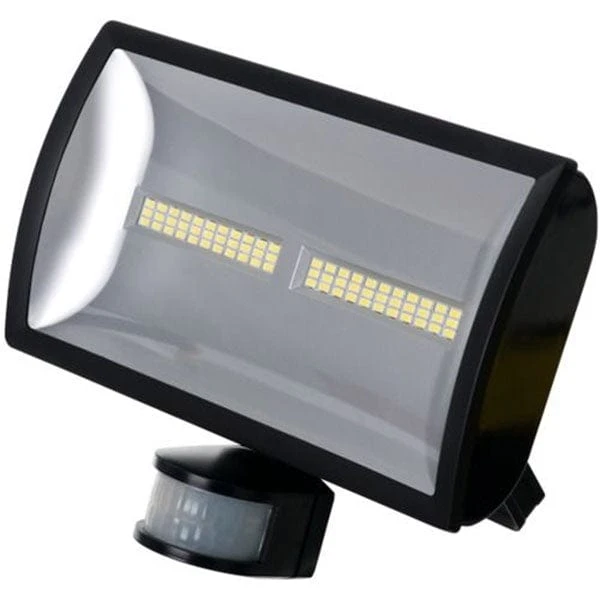

Timeguard 30W Black LED Energy Saver Wide Beam PIR Floodlight – Cool White – LEDX30PIRB

Traditional styling with LED Energy Saving technology incorporating our compact ‘G’ design PIR detector head.

Features:

• Powerful 30W LED Energy Saving PIR Floodlight – equivalent to 250W halogen lighting with only 10% of the running costs
• 2115 lumens bright white light
• Light on times adjustment 5 seconds to 10 minutes
• Optional Dusk to Dawn mode setting
• Optional Permanent ON mode setting – when in Dusk to Dawn and maximum time setting
• Optional Manual ON with pulsed supply mode setting
• Optional Test mode
• 180° PIR detector with up to 12m detection range
• Instant light ON to full brightness
• LUX (light level) adjustment – Day to Night (2 to 200)
• IP55 weatherproof rating
• Slave output – up to 10 sets of LEDX30FLB depending on load type
• Easy quick fit bracket installation

Specifications:

• Detection Range (Max): 12 Metres
• Angle of Detection: 180°
• Lamp Beam Angle: 110° x 100°
• Colour Temperature: 5000 – 5600k
• Light ON Time After Last Detection (Adjustable): 5 Seconds (Min) to 10 Minutes (Max)
• Permanent ON Facility: Pulse
• EC Directives: Conforms to Latest Directives
• Dimensions: Height: 180mm x Width: 245mm x Depth: 115mm
