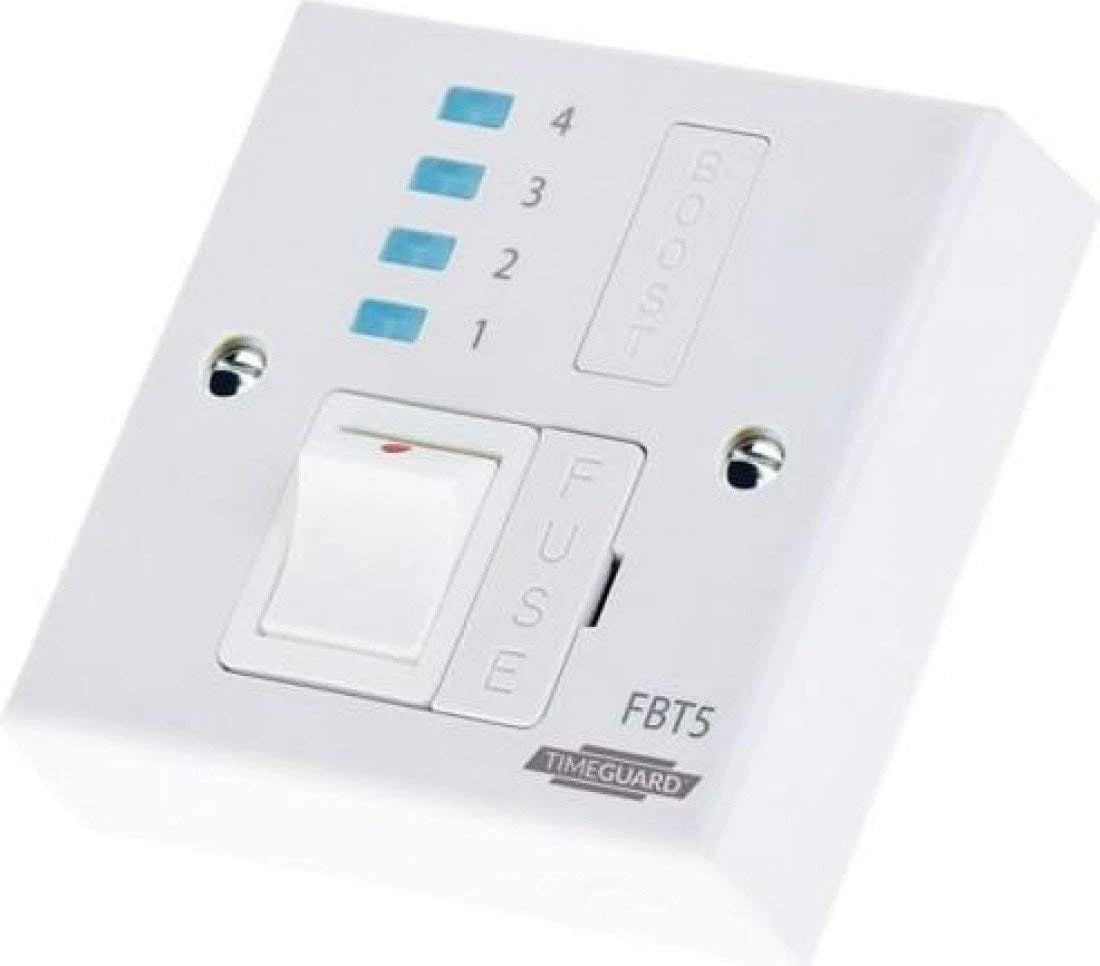

Timeguard Electronic 4 Hour Boost Timer And Fused Spur – FBT5

BoostMaster Fused Spur Countdown Switches now added to the range providing timed output protected by a BS1362 fuse switch. Automatic timed countdown selections to a fail safe OFF using simple push button programming with clear LED output status. Simply replace existing single gang connection units or fixed appliance outlets.

Features:

• Up to 4 on times can be selected: 1, 2, 3 and 4 hours
• Automatic timer countdown selection to fail safe OFF
• Easy push button selection with clear LED output status
• Replaces existing single gang connection unit or fixed appliance outlets
• Provides timed output protected by a BS1362 fuse switch
• Ideal for immersion and room heaters automatically switching off at end of time period set
• Fits a standard flush or surface mount BS wall box min 25mm deep
• Typical applications such as immersion heaters, room heaters, heated mirrors, towel rails and selected lighting applications

Specifications:

• Timer Mode: Boost
• Setting Type: Digital
• Contact Type: Normally open
• Switch Rating 230V AC: 13A resistive, 5A inductive, 1000W incandescent, 1000W halogen, 500W fluorescent, 100W compact fluorescent, 200W LED
• Operating Temperature: 0 to 40ºC
• Wall Box: Minimum depth 25mm
• EC Directives: Conforms to Latest Directives
• Dimensions: Height: 85mm x Width: 85mm x Depth: 31mm
