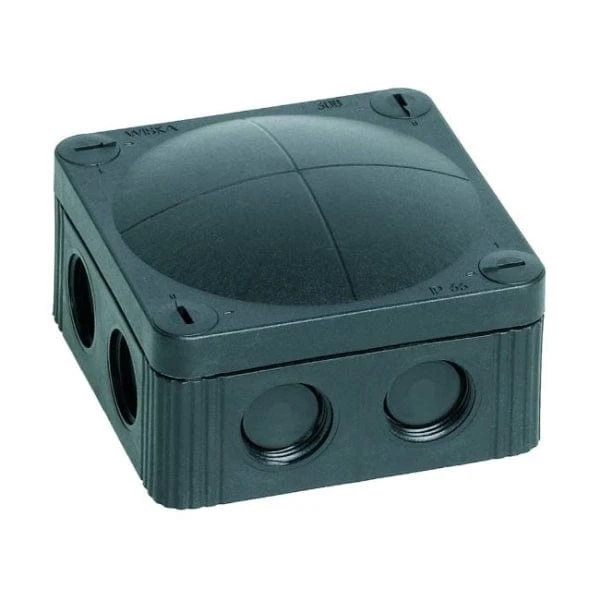

Wiska COMBI 308/5 IP66 Junction Box With 5-Pole Terminals Black- 10060580

Wiska COMBI 308/5 IP66 Junction Box With 5-Pole Terminals Black- 10060580

The Wiska COMBI IP66/67 Weatherproof Junction Box range is resistant to ultraviolet, shatter-proof, impact-resistant, and eminently suitable for extreme conditions or outdoor installations. The Weatherproof Junction Box is Flame-retardent and halogen-free, highly resistant to animal or vegetable fats, mineral oil, diesel, weak acids, strong and weak alkaline solution, and alcohol.

The COMBI 308/5 has 10% more room inside thanks to the bellied cover plus is comes with rust-free quick-release lid screws of plastic, closing the box with only a quarter turn.

COMBI 308 Boxes have an integrated thread into which cable glands can be directly mounted into without locknuts. The patented combination of thread and membrane saves you one further working process.

Specification

• Protection class to EN 60 529: IP 66
• Flame protection: Glow wire test 750 degrees acc. to EN 60695-2-11
• Temperature range: -30 degrees up to 100 degrees, intermittent up to approx. 120 DegreeC
• Voltage: 400 V
• Material: Polypropylene, reinforced glass fiber; Sealing: thermoplastic elastomere
• Terminals/poles: 4 mm Degree
• Fixing: With mounting clip or 4 internal openings outside of the sealing area:
• 8 elastic self-sealing membranes for cable entry without mechanical devices
• 8 integrated M 20 threads, no locknuts necessary
• 4 captive quick-release lid screws
• Incl. mounting clip for snap-on fixing
• Colour RAL 7035 Black

Features

• IP Rated: IP67/IP68
• 8 elastic self-sealing cable inlets (clamping range 3-12 mm)
• Integrated M 20 threads, for cable glands no locknuts necessary
• 4 quick-release lid screws in the cover
• Fixing with the fast mounting clip or internally located openings out of the sealing area
• Includes 5-pole screw terminal 4 mm2 (patented)
• 10% more room inside, thanks to the bellied cover
• 30% saving on labor thanks to faster cable-entry
• Captive quick-release lid screws
